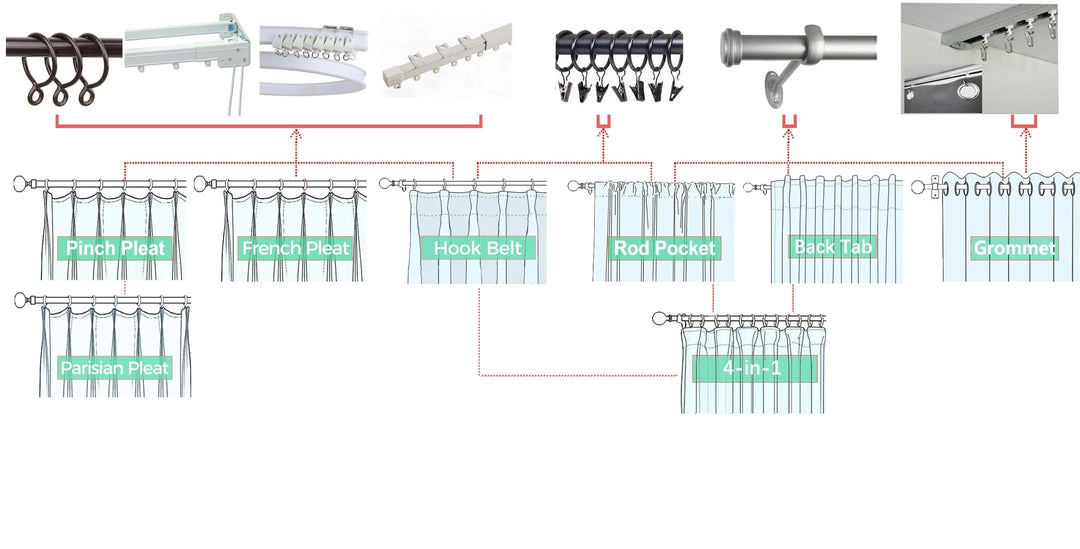

Header Style Match Rod Track

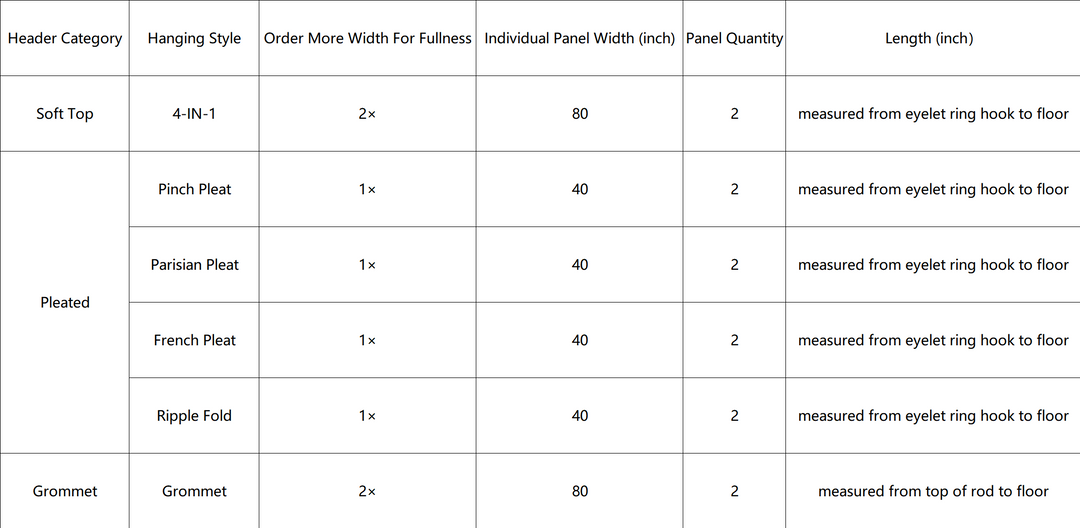

Consider Fullness to Determine Width

This example Rod length 80 inches

Hanging Header Style

Soft top

4-IN-1

  • Versatile 4-in-1 construction: Hook Belt, Rod Pocket, Back Tab and Clip Ring.
  • 3 inches rod pocket size.
  • Hook belt metal pin hook in 3 inches. 6 pin hooks per 40 inches width. Hooks included.
  • Side hem 1 inch, bottom hem 3 1/8 inches.
  • Measure length from the ring eyelet or top of the pole to bottom. Rod clip rings are not included.
  • If rod length is 100 inches, multiply by 150-200% width for folds, then order 2 panels each 75-100 inches wide.
  • It works for rods with rings, rod with clip rings and pole.

Back Construction:

  • Hook Belt: hang with metal pin hooks. (included)
  • Clip ring: hang with clip rings (not included)
  • Rod Pocket: hang with rod pocket for bunched-like look.
  • Back Tab: hang with back tab for pleated-like look.

Hanging Header Style

Pleated Style

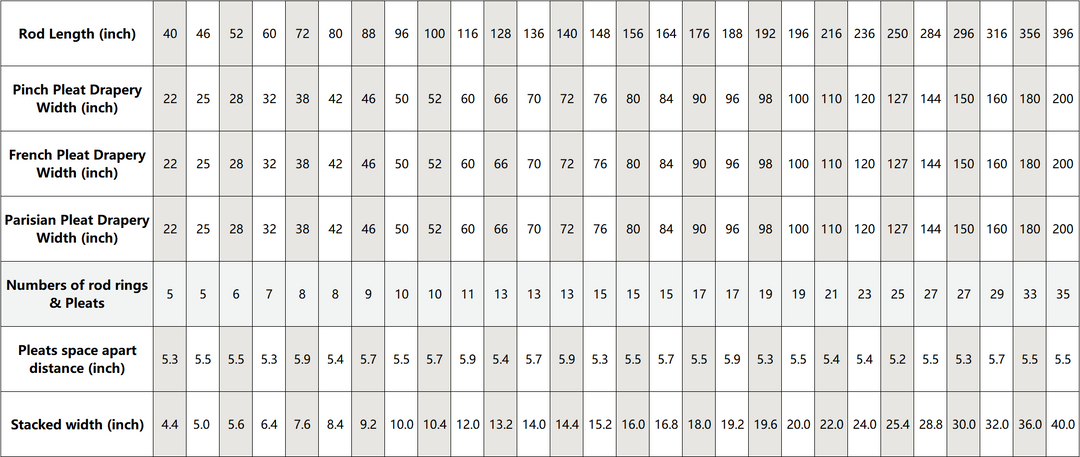

Pleats Space & Numbers for Various Width

Tips: The rings quantity you need equals the pleats quantity.(hooks are already included in our package)

  • The width and space of pleats may vary slightly depending on your track or pole length. Normally pleats space apart 5.5 inches. Provided you have special certain pleats spacing requirement, please let us know for custom made specially, you need pay extra charge fee.
  • Pleats pin hooks: 10 pleats for 50 in width, 14 pleats for 72 in width, 16 pleats for 84 in width, 19 pleats for 100 in width, 21 pleats for 110 in width, 23 pleats for 120 in width, 29 for 150 in width.

Pinch Pleat

Parisian Pleat

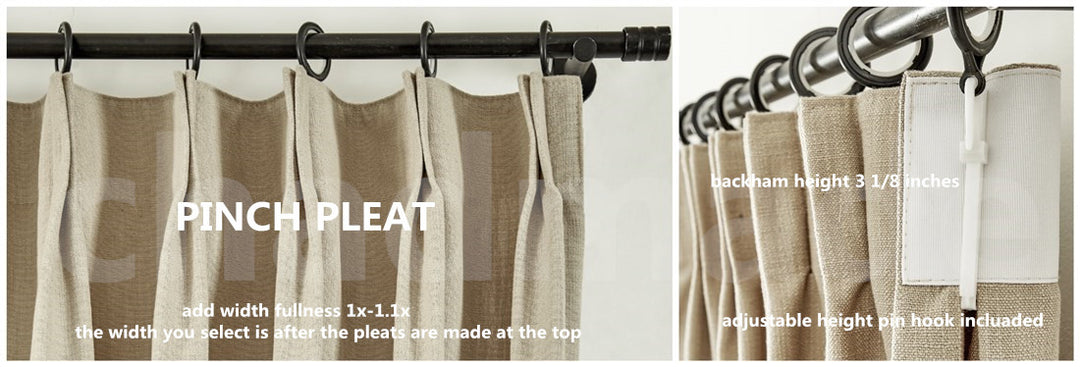

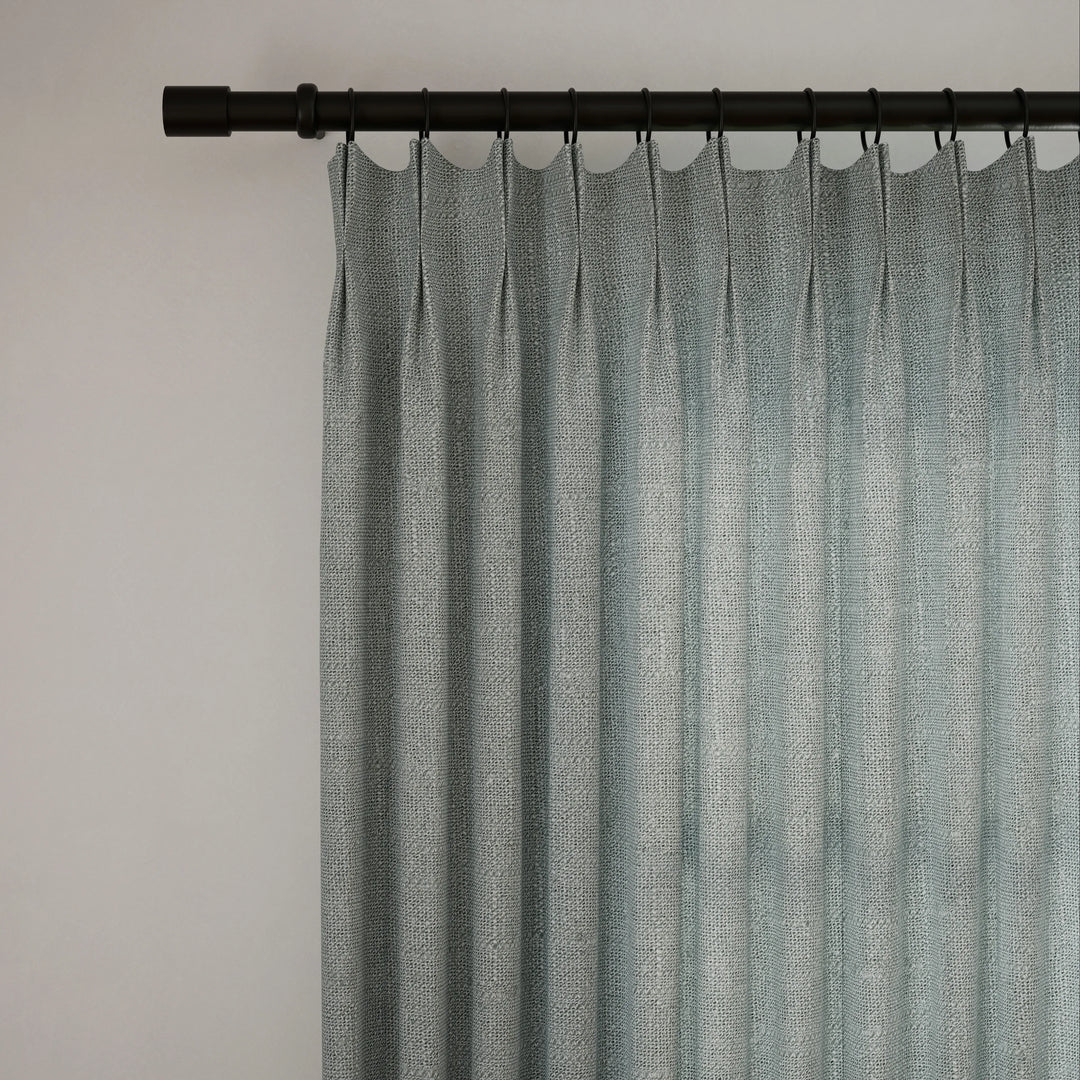

PINCH PLEAT

  • Pinch pleats are more gathered than other headings and have permanent sewn-in pleats for a more luxurious look. It is also called Double Pleated.
  • It works for the track, traverse rod, channel rod, and pole with rings.
  • Comes with adjustable plastic pin hooks.

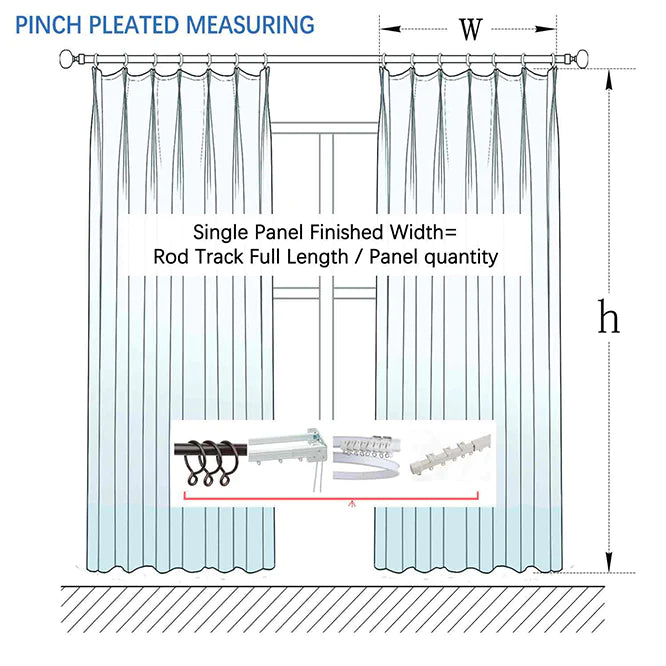

Pinch Pleat Measuring

• Panel width is the width that pleats already set. 200% fabric width is used for pleats and folds to create finished width you order.

• Length is measured from the eyelet ring where the curtain hooks are attached to floor.

• If rod or track length is 100 inches, add possible overlap and gap privacy, then order 1 panel 100 inches width or 2 panels each 50 inches width.

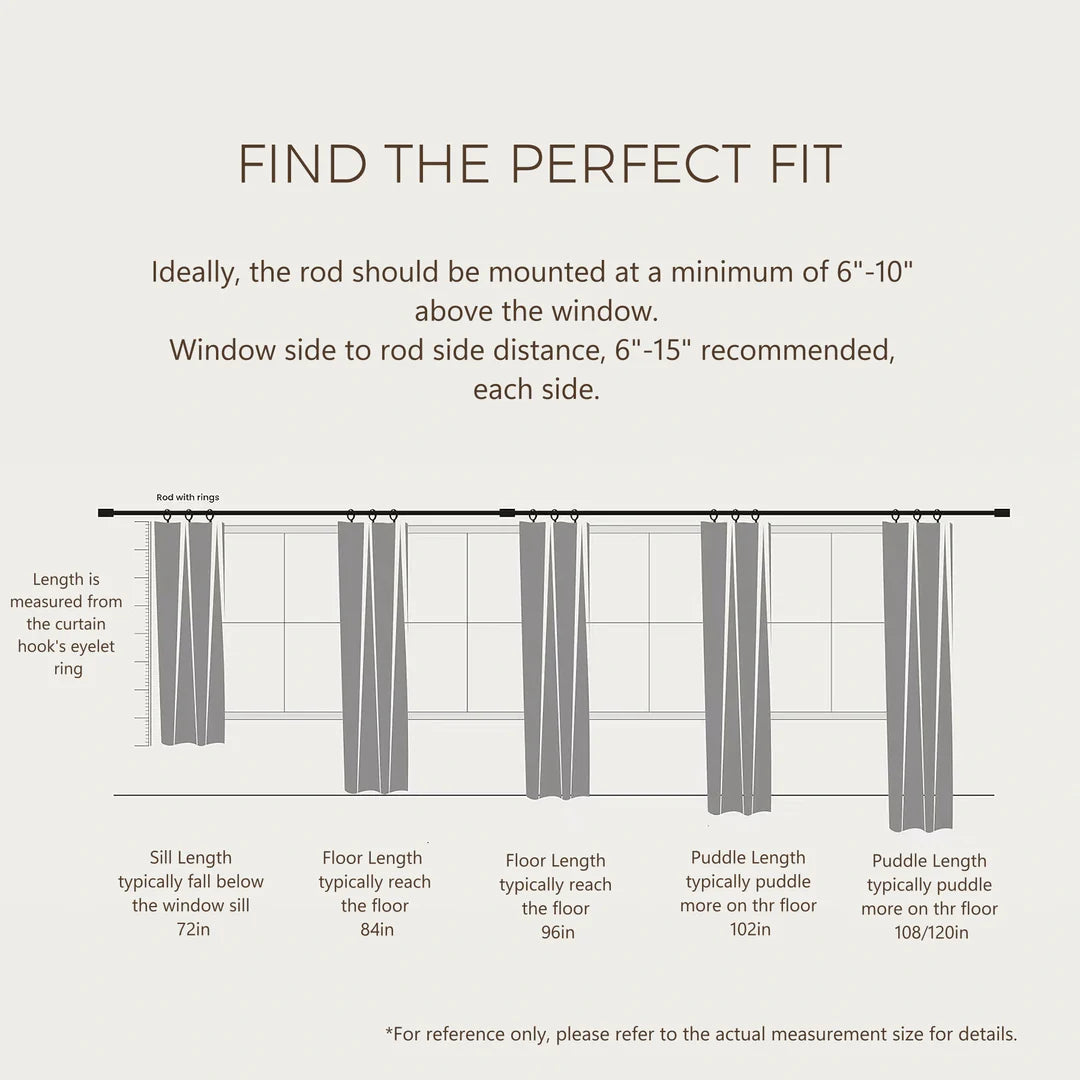

Find The Perfect Fit

• You might want window to show up completely when drapery is opened, in this case, you need consider stacked width to determine rod length. Normally stacking width account for 20% of drapery width.

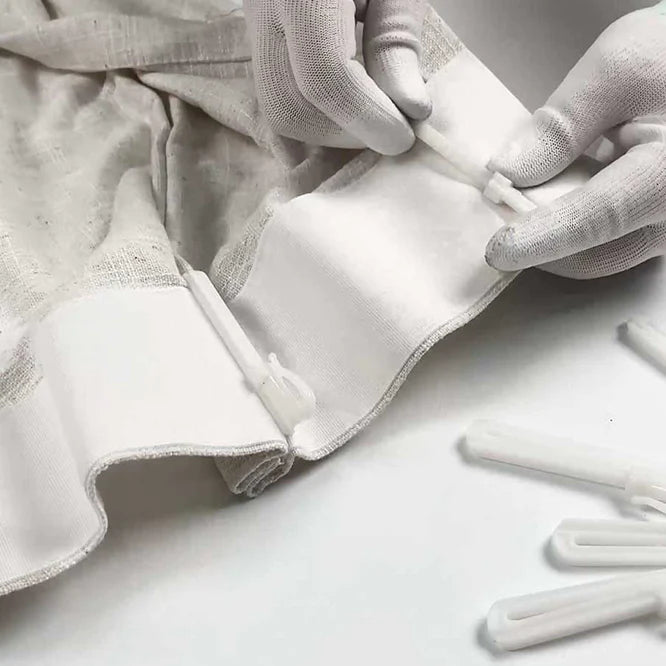

Adjustable Pin Hook

• Adjustable pin hook has a ratchet system to make them adjustable within 3 inches for height. Pin hooks are included, but drapery rod rings are not included.

• Pin hook height 3.5 inches. Pleat depth 1 inch. White back tape width 3-1/8 inches. Side hem 1 inch, bottom hem 3-1/8 inches.

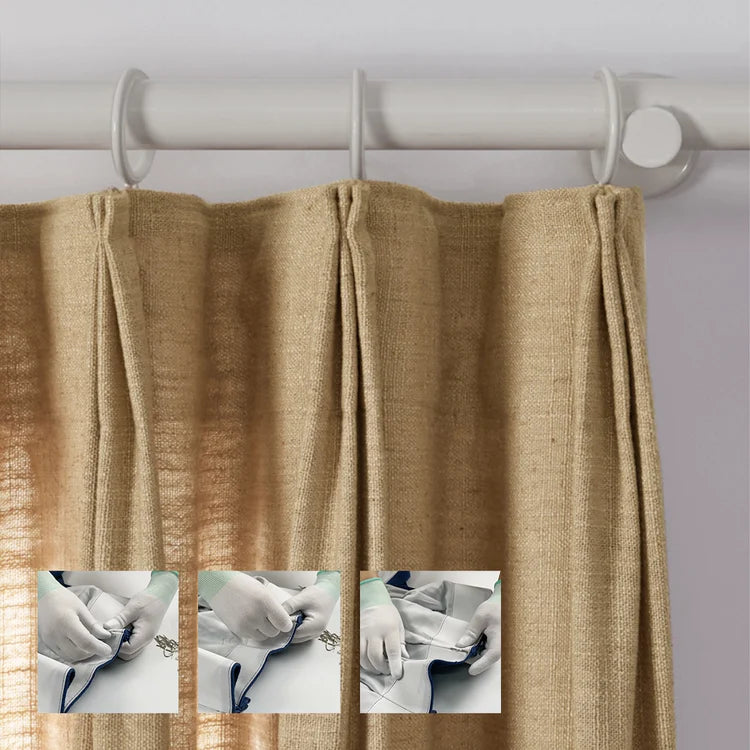

FRENCH PLEAT

  • The French pleat curtain style exudes a romantic charm, elevating the overall aesthetic with its graceful folds.
  • The pleats are strategically positioned slightly lower than traditional pinch pleats, adding a touch of sophistication and unique visual appeal.
  • The rear hooks of this style offer flexibility, allowing for easy customization and rearrangement, enhancing both functionality and beauty.

PARISIAN PLEAT

  • The Parisian Pleat style features a 3-fold pleat
  • Three-fold pleats, tacked at top of panel 1/2” from top
  • Light-to-medium weight fabrics recommended
  • Standard 230% fullness
  • Pleats space apart 5.5 inches.
  • Pleats metal pin hooks quantity: 10 pleats for 50 in width, 14 pleats for 72 in width, 16 pleats for 84 in width, 19 pleats for 100 in width, 20 pleats for 110 in width, 22 pleats for 120 in width, 27 for 150 in width.
  • Metal pin hooks are included.
  • Length is measured from the eyelet ring where the curtain hooks are attached to floor.
  • If rod or track length is 100 inches, then order 1 panel 100 inches width or 2 panels each 50 inches width.
  • It works for the track, traverse rod, channel rod, and pole with rings.

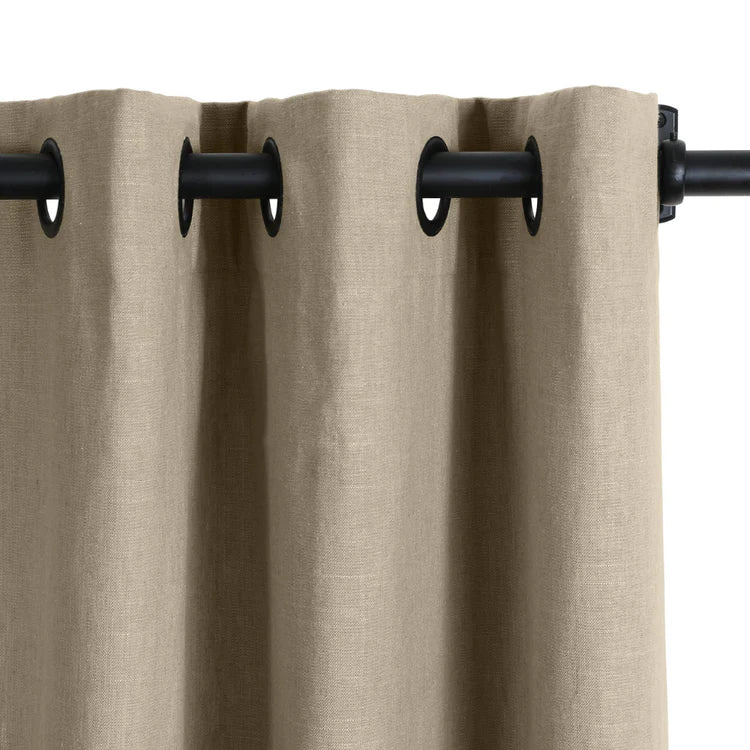

GROMMET

  • Inside diameter 1.6 inches, outside diameter 2.25 inches.

  • 6 grommets for 42 in wide, 8 for 50 in, 10 for 72 in, 12 for 84 in, 14 for 100 in, 16 for 120 in, 22 for 150 in, 26 for 180 in.

  • Side hem 1 inch, bottom hem 3-1/4 inches.

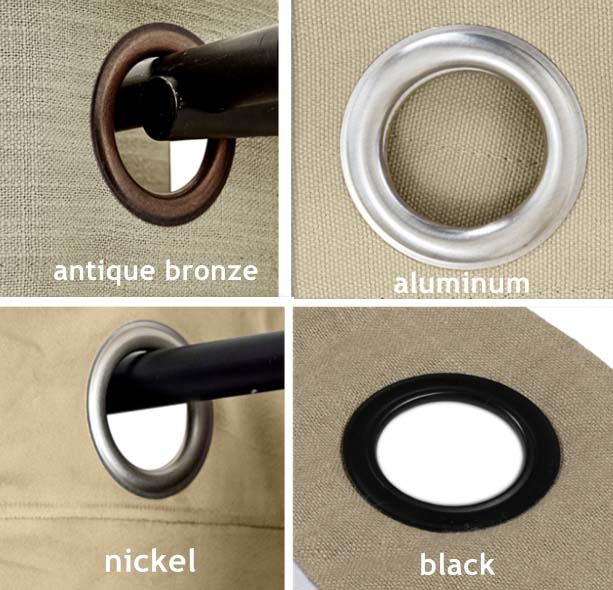

4 Grommet Colors

• Antique bronze

• Nickel

• Black

• Aluminum (outdoor curtain for rustproof)

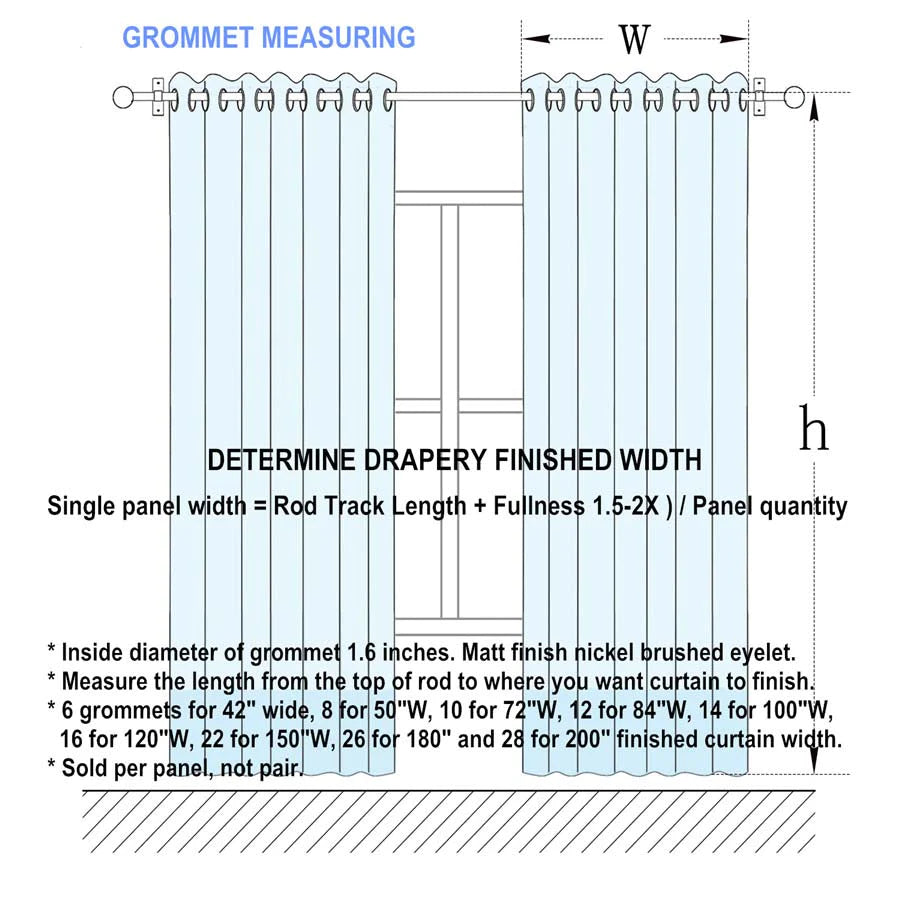

Grommet Measuring

• Order 150-200% of rod length for folds.

• Length is measured from the top of the rod to where you want the curtain to finish.
